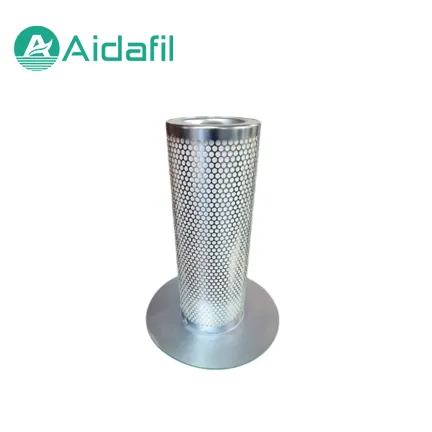

250034-132 Elemen Filter Kompresor Udara
Dalam stok
Gambar datang segera4930655131Presisi dalam setiap lapis
Filtrasi terpercaya dimulai dengan spesifikasi yang diverifikasi.
Filtrasi terpercaya dimulai dengan spesifikasi yang diverifikasi.
4930655131
Elemen penggantian Elemen Kompresor Udara
Elemen Filter Kompresor Udara
4930655131 is a high-efficiency air-oil separator core (commonly known as the oil separator core) designed specifically for industrial screw air compressors.It is a core consumable component in…
Tipe SupplyPengganti pasar independen
KetersediaanTersedia
Waktu tunggu2-3 hari bisnis
Referensi silangUntuk dikonfirmasiTidak ada referensi silang telah ditambahkan
Harga referensi termasuk
Permintaan kutipan
Perintah dikonfirmasi oleh tim kami untuk harga, kompatibilitas dan pengiriman.
Pengiriman FleksibelTitik Layanan Pickup
Spesifikasi terverifikasi untuk seleksi percaya diri.
Konfirmasikan persyaratan instalasi terhadap peralatan manual atau dokumentasi asli.
| Tinggi | 520mm |
|---|---|
| Diameter luar | 400mm |
| Inner diameter | 314mm |
| Presisi filtrasi | ≤ 0.1 μm |
| Initial pressure difference | ≤ 0.02 MPa |
| Suhu operasi | 120°C |
Dimensi menunjukkan, bukan gambar teknik.
4930655131 is a high-efficiency air-oil separator core (commonly known as the oil separator core) designed specifically for industrial screw air compressors.It is a core consumable component in industrial compressed air purification systems.
Product Positioning and Core Value
During the operation of the screw air compressor, lubricating oil enters the compression chamber. The core function of 4930655131 is to thoroughly separate lubricating oil mist from compressed air, return the oil to the lubrication system for circulation, and discharge clean, oil-free compressed air.
• Energy Saving and Consumption Reduction: It features an extremely low initial pressure differential (≤0.02 MPa), which can significantly cut down the power consumption of the air compressor and reduce the enterprise's electricity cost.
• Protection of Post-processing Equipment:
Its ultra-high filtration precision prevents lubricating oil from contaminating downstream dryers, precision filters and pneumatic production lines.
• Long Service Life: Under standard working conditions, its designed service life can generally reach 4000 hours (subject to the environment and oil quality), lowering the frequency of shutdown maintenance.
Catatan Instalasi
When replacing a new filter element, the following three points must be strictly followed; otherwise, oil leakage or safety accidents are highly likely to occur: • An anti-static conductive plate (pin) must be installed: For 4930655131, high-speed airflow friction generates a large amount of static electricity during operation. During installation, make sure the conductive plate on the top of the filter element is in close contact with the metal flange of the air compressor oil separator barrel. If static electricity cannot be discharged, accumulated sparks will directly ignite the oil-gas mixture inside the barrel and cause an air compressor explosion. • Do not scratch or touch the filter paper: The glass fiber layer on the outside of the oil separator core is very fragile. Handle it gently while transporting and inserting it into the oil separator barrel. Do not knock it with hard objects or squeeze the filter paper firmly with dirty hands. • Thoroughly clean the flange sealing surface: During replacement, completely scrape off residues of the old gasket, keep the flange surface of the oil separator barrel clean, and apply a small amount of lubricating oil to ensure the new gasket is pressed evenly and prevent gas short-circuiting and oil leakage.
Penggantian & amp
Do not wait blindly until the service time reaches 4,000 hours for replacement; differential pressure monitoring shall be the primary basis: • Core indicator: When the differential pressure across the oil separator element reaches 0.08 MPa ~ 0.1 MPa (approximately 0.8 ~ 1.0 bar), replacement must be arranged immediately. • Energy consumption cost: For every 0.01 MPa rise in differential pressure, the power consumption of the air compressor increases by about 1%. Failure to replace it in a timely manner will lead to substantial power waste and may even cause deformation and collapse of the oil separator element. • Maximum service period: Even if the differential pressure has not reached the critical value, forced replacement is recommended once the service time hits 1 year to prevent aging of the filter medium.
Sebelum Ordering
Konfirmasi medium, laju aliran, tekanan, suhu, koneksi dan ruang instalasi yang tersedia.
Opsi Pengiriman
Pengiriman atau layanan pickup. Tim kami mengkonfirmasi pengaturan terbaik berdasarkan tujuan, berat dan memimpin waktu.
Dikonfirmasi sebelum Dispatch
Setelah penyelidikan, kami memverifikasi spesifikasi, harga dan status pasokan sebelum pengiriman.
Dukungan Sedang berlangsung
Untuk spesifikasi, instalasi atau pertanyaan berkualitas, jaga informasi produk dan ketertiban tersedia ketika menghubungi kita.
INQUIRYKirim penyelidikan untuk produk ini
Send your requirements for 4930655131 and our selection team will confirm compatibility, price and lead time.
Pertanyaan yang sering diajukan
Bagaimana saya mengkonfirmasi kompatibilitas tanpa referensi merek partai ketiga?
Menyediakan jumlah produk, dimensi, rincian koneksi, kondisi operasi dan informasi peralatan. Tim kami akan mengkonfirmasi aplikasi.
Dimensi mana yang harus kuukur?
Mengukur tinggi keseluruhan, diameter luar, diameter dalam dan benang atau ukuran koneksi. Sebuah foto atau gambar membantu mengkonfirmasi pengganti.
Bagaimana saya memilih bahan segel yang benar?
Pilihan segel tergantung pada media filtrasi, suhu operasi dan kompatibilitas kimia. Kami dapat mengkonfirmasi pilihan yang cocok untuk aplikasi Anda.
Dapatkah Anda menyediakan lembar data produk?
Ya. Kirim nomor produk dan spesifikasi yang diperlukan dan kami akan menyediakan data yang tersedia lembar dan dukungan pemilihan.
